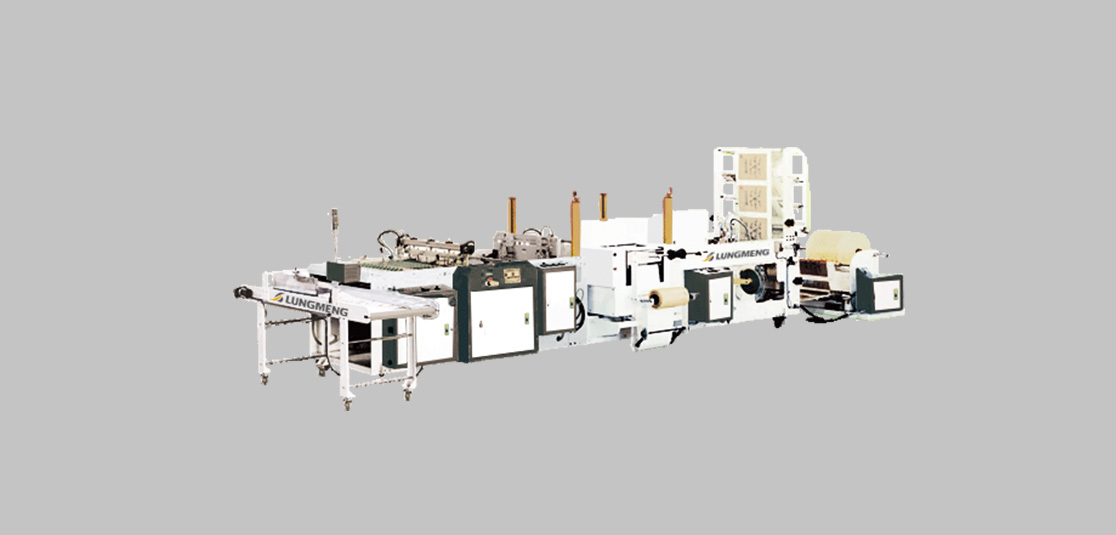

Fully Automatic Multi-Function Shopping Bag Making Machine

TPL800C4
Fully Automatic Multi-Function Shopping Bag Making Machine
This line is designed for various types of shopping bags, such as soft loop, die cut handle, poly draw & patch handle bags. The soft loop feeding system is driven by pneumatic control to allow precise and quick cutting and welding. The die cut punching system is equipped with high speed steel knife designed for durability and easy maintenance. The poly draw inserting device automatically feeds strings into the top folding & sealing area, and the patch handle system attaches PE film to reinforce the bag handle. The convenient auto stacker collects finished bags in an orderly fashion.

Особенности

  • This machine is designed for it's designed for it's versatility to make different type of shopping bags, such as soft loop,die cut handle,poly draw & patch handle bags.
  • Intelligent management system monitors and protects machine from misuse.
  • Advanced microprocessor motion control allows for quick length change and photo registration.
  • Soft loop feeding system is driven by pneumatic control to allow precise and quick cutting and welding.
  • Die cut punching system is equipped with high speed steel knife designed for durability and easy maintenance.
  • Poly draw inserting device automatically feeds string into the top folding&sealing area.
  • Patch handle system attaches PE film to reinforce the bag handle.
  • Convenient auto stacker collects finished bags in an orderly fashion.

Приложения

Model available

Model Bag Size Width Bag Size Length Bag Size Top Folding Bag Size Bottom Gussetting Max. Machine Speed (Bags / min) Thickness of Film (mm) Servo Motor (kw) Machine Dimensions L*W*H (M) ADD
TPL-800C4 Max. 700 mm Max. 760 mm Max. 75 mm Up to 65 mm 60 0.04 - 0.09 4.4 7.6 * 3.2 * 1.85
